EYEBOT


An automated Optical Inspection System


A Self Learning Machine Vision System that sets new standards in Quality Control. Spradecom launches Eyebot-Self Learning Inspection System in technical  collaboration with SighTech Vision System, USA. Eyebot is a revolutionary inspection device. It is a trainable machine version system that installs fast and allows extreme flexibility. Eyebot learns to inspect your products just by looking at them, including variations in positioning, orientation, lighting and clutter, it trains in minutes and requires no PC or software.



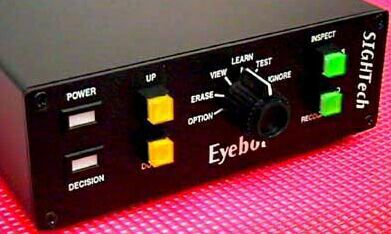

Eyebot-picture1

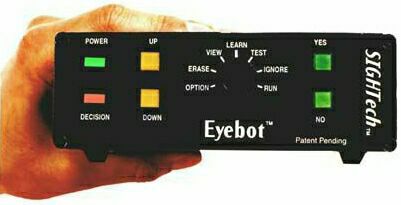

Eyebot-picture2

You can use Eyebot automated optical inspection was previously too complicated or too costly. Anyone can train Eyebot. You show Eyebot some good parts and it learns them. After training it, you give the command to RUN. Eyebot will tell you when it sees anything you did not teach it. You never have to turn ON a PC or struggle with complicated software. Eyebot trains a few minutes to see defective products on manufacturing lines, if lighting or position varies. It is used for incoming, in-process, and outgoing inspection at different locations.


F E A T U R E S
  • Inspection speed over 3600 parts per minute.
  • No Programming required.
  • Trains in minutes or seconds.
  • Learns variations in position  and lighting.
  • Low cost to install, maintain.
  • No PC or software required.
  • Retrains in minutes.
  • Multiple training sessions can be saved and loaded to memory.
  • Compatible with any NTSC or PAL camera.
  • Triggers or strobes may be unnecessary.
  • RS-232 and 2 optically isolated relays ( 3 A / 60 V ).
  • Can IGNORE clutter for object recognition.
  • Eyebot can recognize parts with full X / Y movement and full rotation.
  • Ability to lock settings.


T E C H N I C A L     S P E C I F I C A T I O N S

Input NTSC ( RS- 170 )or PAL ( CCIR ) video.
Output NTSC  ( RS- 170 ) OR PAL ( CCIR ).
Video Cables BNC.
Max Cable Length 30 meters.

Equipment Control
PLC or PC Compatible RS-232

  • Industry standard 9 Pin DTE female connector.

  • 150' maximum cable length.

Speed

19,2000 baud.

Optically Isolated Relays

Switch 3A at 50V AC / DC, DB 25 female connector, 300' cable length maximum.

Eyebot's Speed

Up-to 3,600 parts per minute. Learns in minutes or seconds. Eyebot can make a micro decision on a video field or average over many fields. Eyebot does not slow down when you want it to inspect more features.

PHYSICAL & ELECTRICAL
Size 14cm x 23cm x 4cm.
Weight 1 Kilogram ( 2.2 lbs ).
Power 12 - 24V 500 mA.


A P P L I C A T I O N S



B L O W      M O U L D I N G
  • Neck dimensional variations.
  • Flashing.
  • Deficiencies from incorrect blow molding or trimming.
  • Height, Shape and Size deformations.





  Blow Moulding


      Product Filling Lines



P R O D U C T   F I L L I N G   L I N E S

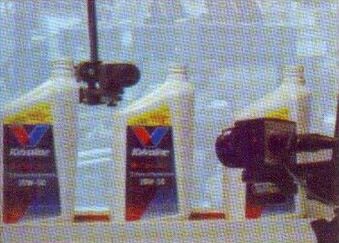

  • Fill levels.
  • Cap application.
  • Cap positioning and including seating and       cross threading.
  • Color.
  • Application of labels.
  • Dates applied by date coder.
  • Overall shape / deformations of glass jar, bottles and cans.

DEMONSTRATION OF PIPETTE INSPECTION
  • Inspecting the pipette tips for the presence of the            white filter defects.
  • Example : Filter may be dislodged, broken or missing.
  • Making 3 decisions per second, without any strobe lighting.



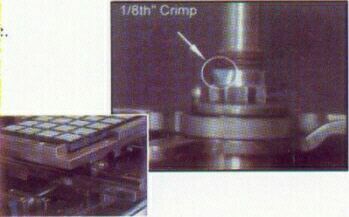

    Demonstration of Pipette Inspection
Inspection of B.G.A

I N S P E C T I O N   OF   B.G.A
Eyebot is inspecting the Ball Grid Array IC packages for double balls, in addition to missing or damaged balls. Eyebot is being strobed in this application.




INSPECTION OF SEMICONDUCTOR CARRIER TAPES FOR GROSS DEFECTS

Eyebot can inspect the tape continuously moving or in an indexed manner with a strobe signal.
      Inspection of Semiconductor Tapes for Carrier defects


Injection Moulding of Caps



INJECTION MOULDING OF CAPS
  • Holes.
  • Colour variations.
  • Overall dimensions and ovality.
  • "Short shot" produced caps.



`



HOW DOES IT WORK

Training Eyebot to inspect your products can be as easy as setting up a photo eye sensor. Here are the 5 steps to making Eyebot work for you.

ERASE

Turn Eyebot's know to ERASE and press YES. This erases Eyebot's memory, so you can begin training. Eyebot retains training for 10 years.

VIEW

Set the size and location of the View are to cover the features you want to inspect. Use the Up / Down buttons to set the video threshold so that you can see the features and defects in the View area.

LEARN

Turn the know to Learn and press Yes. Now show Eyebot only good product. Move, rotate, or vibrate the samples to simulate how it will appear during actual inspection. The Score on the monitor will stabilize in a high range ( 80 - 100 ) when Eyebot is done training.

TEST

Turn knob to Test and observe the Score: the higher the Score, the better the part. Lower the decision Threshold so that good products do not pass. Learning is cumulative, so you can build on your training until al the good parts pass with a good margin.

RUN

Turn the Run and get back to work. Run gives you the same functionality as Test, but Eyebot's solid-state relays activate your alarm, ejector mechanism, or PLC. Two optically isolated relays switch 3A at 60V.
