ENEREG - V


INTRODUCTION

This is a Power Controller device to control "Single Phase" and "Three Phase" AC power.  The single phase and three phase devices control power through smooth thyristorised firing. They control AC power according to reference input from a particular parameter controller. These phase controllers are the ultimate solution for power saving.
These phase controllers give an optimum and continuous AC power, which prolongs the life of the heater. A solid State relay is also considered an AC power controller.

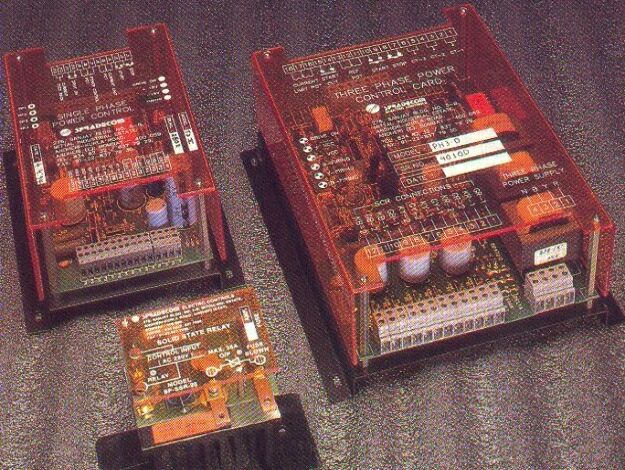

 Enereg-V


FEATURES
  • Single / Three phase, ON/OFF Solid State SCR type.
  • Smooth phase control of AC line power.
  • Accept 0 - 4.5V or 0 - 20 mA input.
  • Fault messages through LED indications.
  • Modular Compact Construction.
  • Range 0.5 kW to 500 kW.


TECHNICAL SPECIFICATIONS

INPUT SUPPLY

Single / Three-phase.

Output SIGNALS

Synchronized firing pulses for back-to-back connected thyristor.

CONTROL SIGNALS

0-2 mA / 0-4.5 V DC.

DIMENSIONS
sINGLE PHASE CONTROLLER

200 x 150 mm.
THREE PHASE CONTROLLER

250 x 200 mm.
