MAGNETIC SENSOR [ MS - 60 ]


INTRODUCTION

MAGNETIC SENSOR FOR WEFT BREAK DETECTION IN POWER LOOMS

WITH MAGIC LAMP

This sensor is used for detecting weft breaks in looms is a pioneering, revolutionary concept being introduced in India for the Power-loom industry. This model provides a direct, reliable & long-life replacement for the conventional photo-reflective sensors.

It operates on a 24V AC / DC power source, using a set of 4 magnets & a sensor unit. Whenever weft break occurs, it activates a potential free relay contact. These contacts are used to activate emergency stoppage of the loom to correct the weft break. It resets automatically upon restoration of the loom. A Magic Lamp is also provided on it to indicate the healthy / fault condition of the loom.

It can be directly installed on the Power-loom along with its high power magnet. The remote alarm signal is transmitted through a built in 4-core cable to a activate emergency stoppage of the loom.



Magneric Sensor - 60



FEATURES

  • Based on principal of magnetic waves -> independent of thread colors.
  • Reliable & Rugged -> unaffected by dust, oil, grease ingress.
  • Immune to misalignments, misfiring & other noise problems found in conventional photo reflective sensors.
  • Magic Lamp indicator.
  • Remote activation of alarm for stoppage of loom.
  • Auto resetting upon restoration of fault.
  • Low Power Consumption.
  • Compact, simple solid state electronics.
  • Easy alignment & site maintenance.


TECHNICAL SPECIFICATIONS

Size 55(W) X 72(L) X 32(H).
Body Complete Aluminum Cast.
Supply Voltage 24 V AC / DC  ±15%.
Relay Contact Auto reset relay N/o contact for direct loom stopping connection Contact rating  1A, 220 V AC
LED Indication Magic lamp with Red color & Green for weft break & safe indication, respectively.
Magnets Supplied in set of 4 magnets each 12mm X 10mm size.
Connector Vibration resistant plug with 5 meter. Long 4 core cable.
Sensing Distance 60 mm gap between sensor & magnet.
Sensing Speed Works reliably upto 1000RPM speed of the loom.


STANDARD ACCESSORIES & OPTIONAL COMPONENTS

STANDARD One Unit of MS-60 Set of 4 Magnets.
OPTIONAL Boom Assembly, Set of Mounting 'L-frame' with complete couplings.

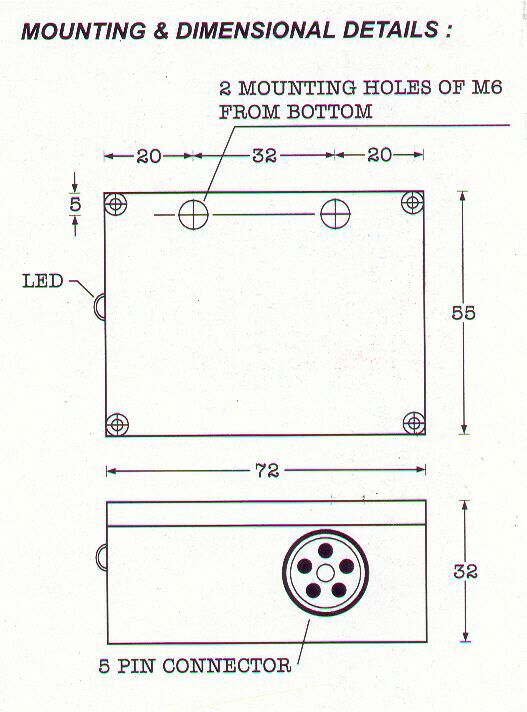

MOUNTING & DIMENSIONAL DETAILS




APPLICATIONS

Image on the left shows one of the application of this product in Loom Industry
