RF SENSOR - 150


INTRODUCTION


FOR WEFT BREAK DETECTION IN CIRCULAR LOOMS

Spradecom launches RF-150 for weft break detection in Circular looms in Technical Collaboration with ATI-Gab, a revolutionary concept is a direct replacement for conventional photo reflective Sensor.

FRO Sensor ( RF-150 ) operates on a 24 V AC / DC power source, microprocessor based detector continuously scans the radio waves generated from FRO transmitter mounted on each Bobbin.

Whenever there is a Weft breakage or when few turns of threads remaining in Bobbin, the transmitter stops transmitting the Signals which is detected by Micro-Processor based detector unit which is mounted 150mm away from shuttle. FRO Sensor can be directly installed on each bobbin.

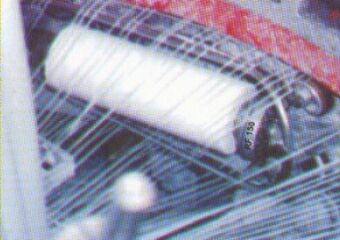

RF Sensor- 150 --> picture1

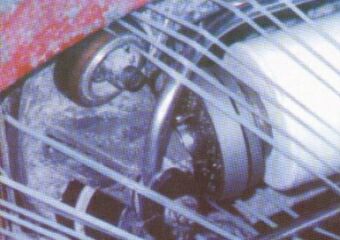

RF Sensor- 150 --> picture2



FEATURES

  • Based on principle of Radio frequency waves independent of thread colors.
  • Reliable and rugged unaffected by dust, oil, grease ingress.
  • No wear and Tear item involved; as there is no recurring cost of spares.
  • Magic lamp indicator.
  • Works Reliable from 35 RPM to 1000 RPM speed of the loom.
  • Alignment is not critical.
  • Immune to misalignments, misfiring & other noise problems found in conventional photo reflective sensors.


APPLICATIONS

Image above shows one of the application of this product in Loom Industry
